TRI-S tankers are available in capacities from 4000 to 5000 gallons (18,184 to 22,500 litres) and use three oversized commercial high-speed axles to carry the weight.

The TRI-S range of tankers is engineered to provide unparalleled manoeuvrability. To make that a reality, the rear axles come equipped with passive steering as standard. Additionally, our tankers are fitted with a Jurop 11000 litre pump as standard to ensure robust and efficient filling operations.

TRI-S (Triaxle – Standard)

Product Axle Pump Capacity
4000 TRI-S 600/50 R22.5 BKT Ridemax 11000 18184 litres
4500 TRI-S 600/50 R22.5 BKT Ridemax 11000 20457 litres
5000 TRI-S 600/50 R22.5 BKT Ridemax 11000 22500 litres
TRI-S Tankers Ireland & UK
TRI-S Tankers Ireland & UK

Introducing the extraordinary TRI-S range, where manoeuvrability takes centre stage. In a groundbreaking design, the rear axles of these tankers come equipped with standard passive steering, revolutionising agility and ease of handling.

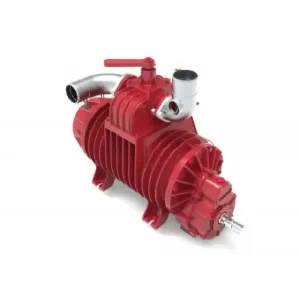

A Jurop 11000-litre vacuum pump is fitted as standard across the TRI-S range. Jurop is a high-quality pump designed and manufactured in a state-of-the-art factory in Italy. As a result, jurop pumps are recognised as the fastest and most powerful vacuum pumps available today. Each pump is assembled according to Jurop’s methodical standards and is carefully tested and checked. PTO-driven as standard, Jurop pumps provide the most efficient method of filling or emptying your slurry tank.

Jurop pumps have a worldwide reputation for quality and minimal maintenance. Parts and services are available locally from your nearest HiSpec dealer, and the premium build of Jurop pumps ensures an extremely long working life. Additional pump improvement options can be viewed on our Options page.

Tyres

TRI-S tankers have a large carrying capacity, and this capacity is distributed over three axles and six tyres. TRI-S have front and rear steering as standard, and tyre choice will help to travel over land. Fitted as standard with 600/50-22.5 BKT flotation tyres allows the tanker to float over the ground without damage. The unique thread design allows for carrying very high loads at low pressure, guaranteeing at the same time reduced soil compaction and preventing damage to the soil. We recommend 600/50 R22.5 BKT FL693M Ridemax tyres for more roadwork.
600/50 – 22.5 BKT FL648 600/50 R22.5 BKT Ridemax
611 (24”) 1175 (46”) 595 (23”) 1220 (48”)

New Feature: Axles

The TRI-S provides a huge capacity, spread over three axles. These axles are non-recessed, allowing for maximum carrying capacity. The TRI-S uses high-speed commercial axles with the rear steering for manoeuvrability, and it’s ideal for ferry tankers or field spreading.

Additional Features

All TRI-S tankers are fitted with the following features as standard:
• Swivel hitch
• Sprung drawbar
• Parking brake
• Jurop 11000 litre vacuum pump
• Manual pump changeover
• PTO
• Syphon protection tank
• Anti-implosion rings
• Pressure relief valve
• Collared dished ends
• 6mm British steel
• 3″ sight glass (x2)
• Internal baffles
• 6″ galvanised quick attach (x1)
• 6″ blanked fill point (x3)
• 6″ hose carriers (x1)
• 6″ x 15′ reinforced suction hose (x1)
• LED road lights (x1)
• 2″ wash-down adapter
• 600mm hinged galvanised rear access point
• Non-return hydraulic valve
• Low trajectory splash-plate
• Tridem sprung commercial axle c/w front & rear steering.
• 420×180 hydraulic brakes
• 600/50 R22.5 BKT Ridemax FL693 tyres
• Mudguards
• Hi-Spec red paint finish

slurry tanks

Model Tyres Pump Width A Length B Height C Diameter D Length L Weight
Litres mm mm mm mm mm kg
4000 TRI-S 600/50 R22.5 BKT FL693 11000 2710 8260 3400 2133 6160 7750
4500 TRI-S 600/50 R22.5 BKT FL693 11000 2710 8500 3400 2133 6410 7980
5000 TRI-S 600/50 R22.5 BKT FL693 11000 2710 8750 3400 2133 6660 8250

TRI-S Specification

Product Axle Commercial Brake Steering
4000 TRI-S 127 round Yes 420 x 180  Yes (Rear)
4500 TRI-S 127 round Yes 420 x 180 Yes (Rear)
5000 TRI-S 127 round Yes 420 x 180 Yes (Rear)
