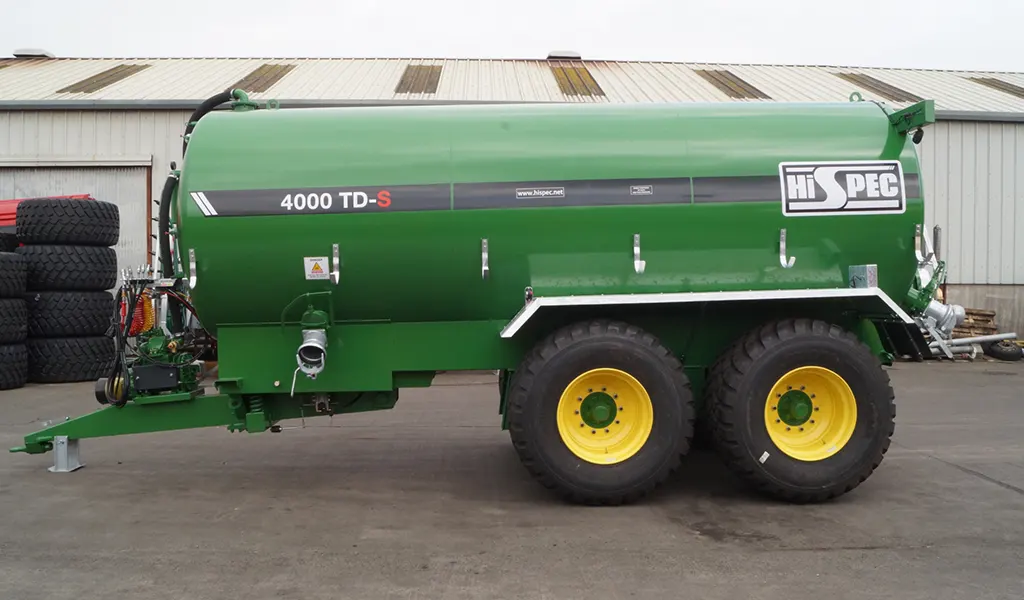

Discover Our Range Of TD-S Tankers

A Jurop vacuum pump is fitted as standard across the TD-S range. Jurop is a high-quality pump designed and manufactured in a state-of-the-art factory in Italy. As a result, jurop pumps are recognised as the fastest and most powerful vacuum pumps available today. Each pump is assembled according to Jurop’s methodical standards and is carefully tested and checked. PTO-driven as standard, Jurop pumps provide the most efficient method of filling or emptying your slurry tank. Jurop pumps have a worldwide reputation for quality and minimal maintenance. Parts and services are available locally from your nearest HiSpec dealer, and the premium build of Jurop pumps ensures an extremely long working life. Additional pump improvement options can be viewed on our Options page.

Tyres

Tyre choice has become one of the most important factors when considering your TD-S tank.TD-S tankers have a wide range of options for field and road use. Fitted as standard on 560/60-22.5 BKT FL630 tyres, HiSpec can offer multiple options in either 22.5 or 26.5 sizes. The larger 26.5 sizes are becoming more popular as they offer lower rolling resistance, reduced wear and improved control. The speed index classes of the tyres stand for higher speeds when travelling on the road leading to significant time savings. In addition, the low rolling resistance contributes to less fuel consumption.

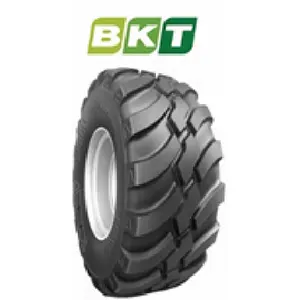

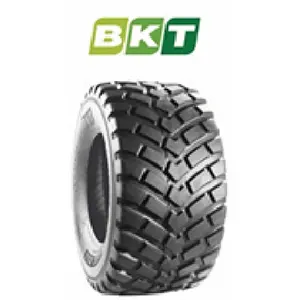

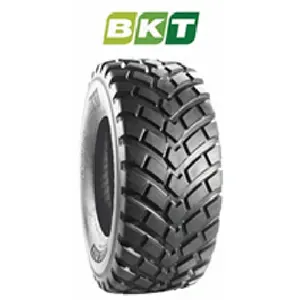

BKT FL630 tyre pattern offers a 50/50 (road/field) thread. On the other hand, BKT Ridemax FL693 M is the ideal radial tyre for those who frequently travel on the road, 75/25 (road/field).

560/60 R22.5 BKT FL630	560/60 R22.5 BKT FL693 600/50 R22.5 BKT FL693	600/55 R26.5 BKT FL630 650/55 R26.5 BKT FL630 710/50 R26.5 BKT FL630	600/55 R26.5 BKT FL693 650/55 R26.5 BKT FL693 710/50 R26.5 BKT FL693
543 (22”) 1244 (49”)	545 (21”) 1245 (49”) 611 (24”) 1175 (46”)	611 (24”) 1333 (52”) 645 (25”) 1389 (55”) 727 (29”) 1383 (55”)	611 (24”) 1333 (52”) 645 (25”) 1389 (55”) 727 (29”) 1383 (55”)

New Feature: Chassis

The chassis supports the barrel along key locations. Firstly, both sides of the barrel overlap in the centre and, secondly, along the outsides to transfer the weight safely towards the axle. The chassis also accommodates additional reinforcements to facilitate low-emission applicators on the rear.

The folded chassis acts as a solid foundation to support the barrel. The axle plate is married up to the underside of the chassis and placed towards the rear to aid balance and ensure adequate weight is transferred towards the tractor.

New feature: Parboilic axle

The parabolic axle is welded along the entire chassis for maximum support. The parabolic is particularly suited to intensive use as stresses and strains are transmitted over a greater distance than a conventional bogie. The suspension is under-slung to reduce height and increase stability as the operator travels from one job to another.

Additional Features

All TD-S tankers are fitted with the following features as standard:
• Swivel hitch
• Sprung drawbar
• Parking brake
• Jurop vacuum pump
• Manual pump changeover
• PTO
• Syphon protection tank
• Anti-implosion rings
• Pressure relief valve
• Collared dished ends
• 6mm British steel
• 3″ sight glass (x2)
• Internal baffles
• 6″ galvanised quick attach (x1)
• 6″ blanked fill point (x3)
• 6″ hose carriers (x1)
• 6″ x 15′ reinforced suction hose (x1)
• LED road-lights (x1)
• 2″ wash-down adapter
• 600mm hinged galvanised rear access point
• Non-return hydraulic valve
• Low trajectory splash-plate
• Tandem sprung commercial axle
• Rear steering (2600 TD-S & above)
• 420×180 hydraulic brakes
• 560/60-22.5 BKT FL630 tyres
• Mudguards
• Hi-Spec red paint finish

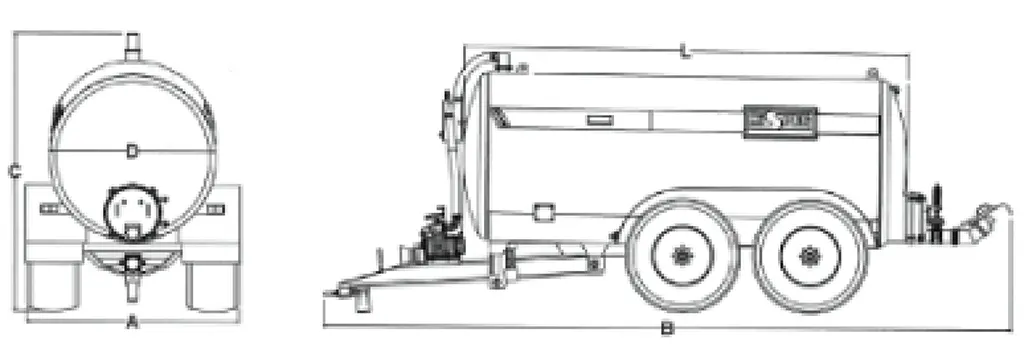

TD-S Specification
