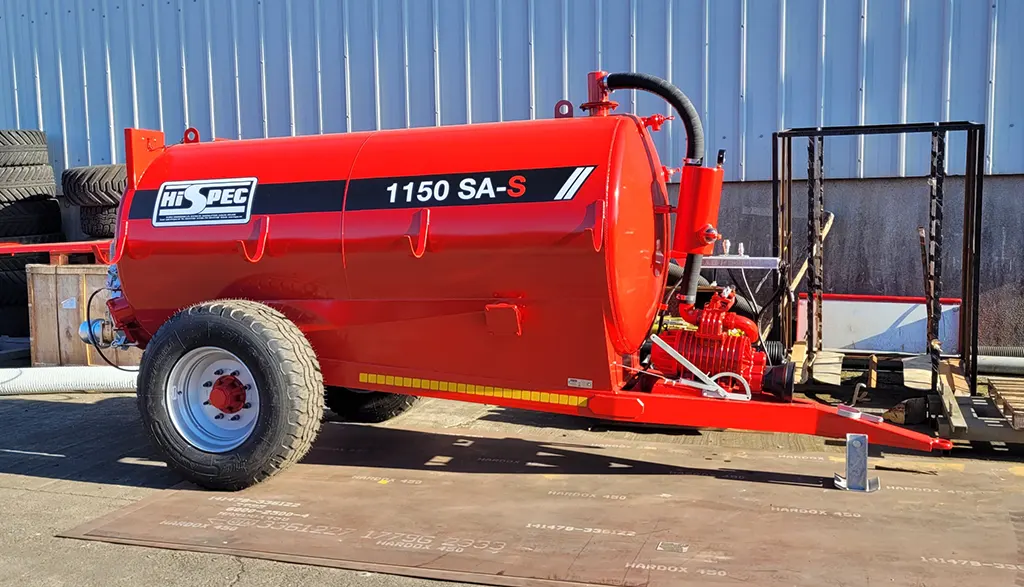

SA-S tankers are non-recessed vacuum tankers where the wheels are located outside of the barrel. With capacities from 800 to 2000 gallons (3,637 to 9,092 litres), the SA-S tanker range is designed to meet the needs of smaller farmers. The SA-S range is fitted with an agricultural axle as standard, as this range is particularly suited to farmers with little road work and smaller capacities.
SA-S Range (Single Axle – Standard)
Product | Axle | Pump | Capacity |
---|---|---|---|
800 SA-S | 15 x 22.5 | 9000 | 3660 litres |
1150 SA-S | 15 x 22.5 | 9000 | 5228 litres |
1350 SA-S | 550/60 – 22.5 BKT FL648 | 9000 | 6319 litres |
1600 SA-S | 550/60 – 22.5 BKT FL648 | 9000 | 7501 litres |
2000 SA-S | 560/60 R22.5 BKT FL630 | 9000 | 9547 litres |
The SA-S tanker range is hand welded to give a vacuum tanker one of the strongest finishes. All of the SA-S range is manufactured using 6mm high-quality British steel. Collared dished ends are inserted into the barrel, along with the addition of anti-implosion rings to give a solid finished barrel. All the SA-S models sit on folded supports the entire barrel length to distribute the load evenly to the chassis. This reduces stress and strain on the barrel and helps to minimise weak points that may occur over time. The chassis of the SA-S range is made from large channel iron with additional reinforcement in key areas. The chassis is complete with an A-frame drawbar to allow tight turning circles in and around farm yards.

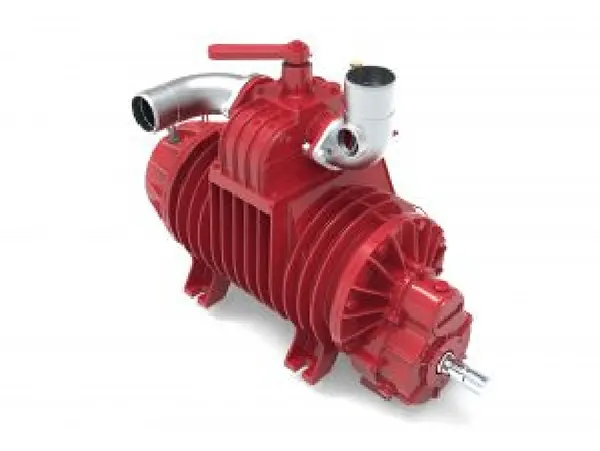

Jurop Pump
A Jurop 9000-litre vacuum pump is fitted as standard across the SA-S tanker range. The Juror is a high-quality pump designed and manufactured in a state-of-the-art factory in Italy. Jurop pumps are recognised as the fastest and most powerful vacuum pumps available today. Each pump is assembled according to Jurop’s methodical standards and is carefully tested and checked. PTO-driven as standard, Jurop pumps provide the most efficient method of filling or emptying your slurry tank. Jurop pumps have a worldwide reputation for quality and minimal maintenance. Parts and services are available locally from your nearest Hi-Spec dealer, and the premium build of Jurop pumps ensures an extremely long working life. Additional pump improvement options can be viewed on our Options page. |

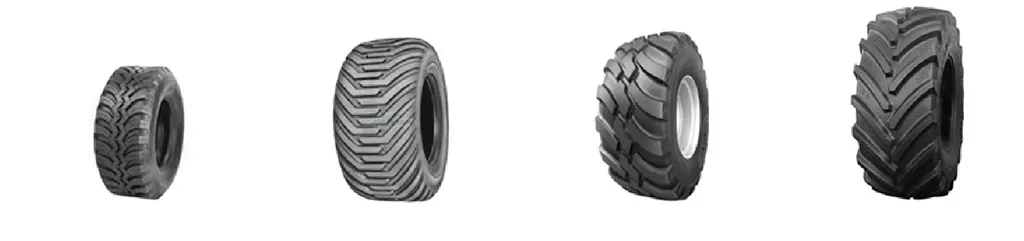

Tyres
The SA-S range of tankers and tyres is designed for speeds ≤ 25km/h. The most common choice of tyre for farmers is the 550/60-22.5 BKT FL648 flotation tyre, as the weight of the tanker is spread over a greater area. The flotation tyre allows the tanker to float over the ground without damage. The unique thread design allows for carrying very high loads at low pressure, guaranteeing reduced soil compaction and preventing damage to the soil. If the sloped ground is an issue in the fields, the 540/70 R24 tractor grip tyre will provide greater grip on those sloped areas.
15 x 22.5 | 550/60 – 22.5 BKT FL648 | 560/60 R22.5 BKT FL630 | 540/70 R24 |
385 (15”) 1080 (43”) | 550 (22”) 1240 (49”) | 543 (21”) 1244 (49”) | 540 (21”) 1400 (55”) |
Additional Features
All SA-S tankers are fitted with the following features as standard:
• Ring hitch
• Parking brake
• Jurop 9000 litre vacuum pump
• Manual pump changeover
• PTO
• Syphon protection tank
• Anti-implosion rings
• Pressure relief valve
• Collared dished ends
• 6mm British steel
• 3″ sight glass (x2)
• 6″ fill point c/w galvanised quick attach (x1)
• 6″ blanked fill point (x3)
• 6″ suction hose carriers (x1)
• 6″ x 15′ reinforced suction hose (x1)
• LED road lights (x1)
• 2″ wash-down adapter
• 600mm hinged galvanised rear access point
• Non-return hydraulic valve
• Low trajectory splash-plate
• Agricultural axle
• 300×90 hydraulic brakes
• Hi-Spec red paint finish
SA-S Range (Single Axle – Standard)
Model | Tyres | Pump | Width A | Length B | Height C | Diameter D | Length L | Weight |
---|---|---|---|---|---|---|---|---|
Litres | mm | mm | mm | mm | mm | kg | ||
800 SA-S | 15 x 22.5 | 9000 | 2285 | 5540 | 2360 | 1220 | 3020 | 1550 |
1150 SA-S | 15 x 22.5 | 9000 | 2285 | 6295 | 2450 | 1372 | 3570 | 1840 |
1350 SA-S | 550/60 – 22.5 FL648 | 9000 | 2285 | 6425 | 2550 | 1524 | 3670 | 2070 |
1600SA-S | 550/60 – 22.5 FL648 | 9000 | 2550 | 7245 | 2650 | 1524 | 4250 | 2350 |
2000 SA-S | 560/60 R22.5 FL630 | 9000 | 2550 | 7305 | 3020 | 1740 | 4260 | 2600 |
SA-S Axle Specification
Product | Axle | Brake |
800 SA-S | 80 x 80 | 300 x 90 |
1150 SA-S | 80 x 80 | 300 x 90 |
1350 SA-S | 80 x 80 | 300 x 90 |
1600 SA-S | 80 x 80 | 300 x 90 |
2000 SA-S | 100 x 100 | 400 x 80 |
