The SA-R range of vacuum tankers features premium single-axle recessed slurry tankers for farmers and contractors alike.

The SA-R tanker range is designed to meet every farmer’s and most contractors’ needs. Additional features include a swivel hitch with a sprung drawbar for maximum operator comfort. In addition, the barrel of the SA-R tankers is recessed to include large radial tyres, which provide low rolling resistance and a more significant footprint to reduce soil damage.

SA-R Range (Single Axle – Recessed)

Product Axle Pump Capacity
1350 SA-R 750/70 R26 Alliance 9000 6137 litres
1600 SA-R 750/70 R26 Alliance 9000 7273 litres
2000 SA-R 750/70 R26 Alliance 9000 9183 litres
2300 SA-R 750/70 R26 Alliance 11000 10547 litres
2600 SA-R 800/65 R32 Alliance 11000 11,593 litres
3000 SA-R 750/60 R30.5 Alliance 11000 13784 litres
SA-R Tanker
SA-R Tanker

The capacities of the SA-R range from 1350 to 3000 gallons (6,137 to 13,784 litres). Sizes from 1350 SAR upwards to 2300 come standard on a stepped axle to dramatically lower the overall height of the tanker. Hi-Spec also uses Alliance tyres as standard on these sizes. Alliance tyres are considered premium quality radial for heavy-duty field and hauling jobs. All of the SA-R range is manufactured using 6mm high-quality British steel. Collared dished ends are inserted into the barrel, along with the addition of internal baffle plates and anti-implosion rings to give a strong finish. In addition, the double-folded chassis that supports each SA-R tanker in four key areas underneath the barrel is unique to Hi-Spec. This means that the entire underside of the barrel is fully supported across both the entire width and the length of the tank. This reduces stress on the barrel and helps to minimise weak points.

Stepped Axle

SA-R models from 1350 to 2300 gallons come standard on a stepped high speed commercial axle. This results in the rear of the tanker being lower to the ground than competitor’s models, leading to increased stability and safety on the road or on sloped grounds. The stepped axle is fitted with 420×180 hydraulic brakes as standard to increase stopping power. Air brakes can also be specified to further improve braking efficiency. HiSpec use Alliance wheels as standard on our SA-R range to further improve stability.
Jurop Pump

A Jurop vacuum pump is fitted as standard across the SA-R tanker range. Jurop is a high-quality pump designed and manufactured in a state-of-the-art factory in Italy. Jurop pumps are recognised as the fastest and most potent vacuum pumps available today. Each pump is assembled according to Jurop’s methodical standards and is carefully tested and checked. PTO-driven as standard, Jurop pumps provide the most efficient method of filling or emptying your slurry tank. Jurop pumps have a worldwide reputation for quality and minimal maintenance. Parts and services are available locally from your nearest Hi-Spec dealer, and the premium build of Jurop pumps ensures an extremely long working life. Additional pump improvement options can be viewed on our Options page.

Tyres

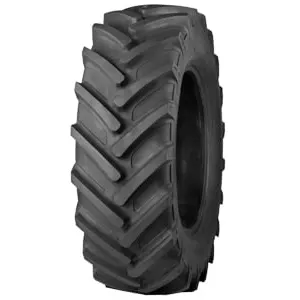

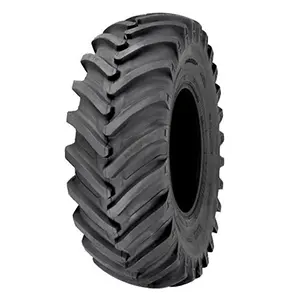

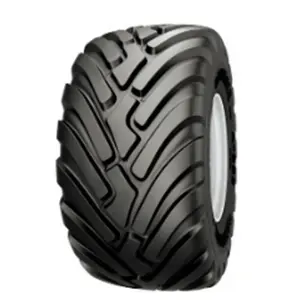

SA-R models from 1350 to 2300 gallons are fitted standard on 750/70 R26 Alliance tyres (28.1). The unique shoulder design ensures excellent grip and high traction efficiency. The large footprint area reduces ground pressure, minimising compaction and increasing flotation. The 2600 SA-R is fitted on 800/65 R32 Alliance tyres. These are 181 A8 rated for use with increased speed or with the addition of a slurry applicator on the rear of the tanker. Strong radial construction with reinforced beads and sidewalls provide long tyre life. The 3000 SA-R is fitted with a straight axle and 750/60 R30.5 Alliance tyres (181 D). Alliance tyres offer higher load/speed ratings when compared with other tyre manufacturers.

750/70 R26 Alliance 800/65 R32 Alliance 750/60 R30.5 Alliance
750 (29”) 1780 (70”) 800 (31”) 1850 (73”) 767 (30”) 1680 (66”)

New Feature – SA-R Swivel Hitch and Suspension

We use a 50mm swivel ring as standard for all SA-R models. The swivel hitch allows the tanker to follow the tractor easier on uneven terrain. The swivel hitch is fitted via a bushing onto the drawbar, which makes replacement easier. A greasing point is provided to increase working life.

Additional Features

All SA-S tankers are fitted with the following features as standard:
• Swivel hitch
• Sprung drawbar
• Parking brake
• Jurop vacuum pump
• Manual pump changeover
• PTO
• Syphon protection tank
• Anti-implosion rings
• Pressure relief valve
• Collared dished ends
• 6mm British steel
• 3″ sight glass (x2)
• Internal baffles
• 6″ galvanised quick attach (x1)
• 6″ blanked fill point (x3)
• 6″ hose carriers (x1)
• 6″ x 15′ reinforced suction hose (x1)
• LED road lights (x1)
• 2″ wash-down adapter
• 600mm galvanised rear access point
• Non-return hydraulic valve
• Low trajectory splash-plate
• Stepped commercial axle (3000 SA-R on a straight axle)
• 420×180 hydraulic brakes
• Built-in round mudguards
• Hi-Spec red paint finish

SA-R Range (Single Axle – Recessed)

Model Tyres Pump Width Length Height Diameter Length Weight
Litres mm mm mm mm mm kg
1350 SA-R 750/70 R26 Alliance 9000 2580 6425 2820 1524 3670 2850
1600 SA-R 750/70 R26 Alliance 9000 2580 7245 2820 1524 4250 3250
2000 SA-R 750/70 R26 Alliance 9000 2580 7305 3020 1740 4260 3600
2300 SA-R 750/70 R26 Alliance 11000 2580 7245 3050 1866 4300 3740
2600 SA-R 800/65 R32 Alliance 11000 2610 8145 3050 1866 4910 4120
3000 SA-R 750/60 R30.5 Alliance 11000 2610 8775 3200 1866 5540 4380

SA-R Axle Specification

Product Axle Size Commercial Brake Axle
1350 SA-R 150 x 150 Yes 420 x 180 Stepped
1600 SA-R 150 x 150 Yes 420 x 180 Stepped
2000 SA-R 150 x 150 Yes 420 x 180 Stepped
2300 SA-R 150 x 150 Yes 420 x 180 Stepped
2600 SA-R 150 x 150 Yes 420 x 180 Straight
3000 SA-R 150 x 150 Yes 420 x 200 Straight
