Hi-Spec manufactures its chassis-mounted dribble bars to provide a factory-fit solution for low-emission spreading.

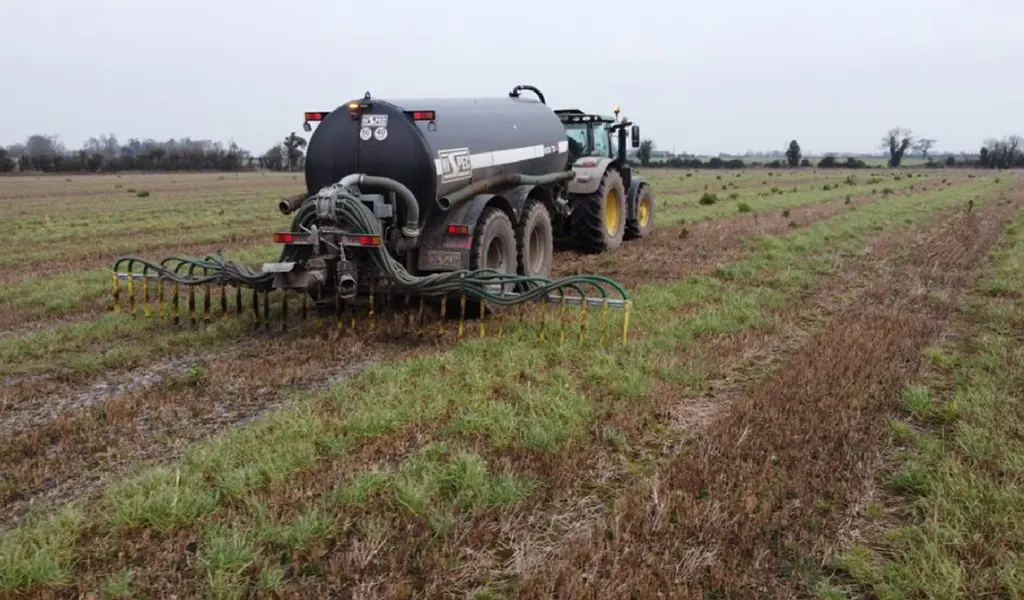

The Hi-Spec Dribble bar is 7.5m long and the most robust dribble bar on the Irish market. The Hi-Spec Dribble bar is made in Ireland to withstand harsh Irish conditions and boasts many unique features that ensure high performance. This heavy-duty machine weighs only 520 kg and is mounted on an existing tanker manhole.
Hi-Spec manufactures its chassis-mounted dribble bars to provide a factory-fit solution for low-emission spreading. Our 7.5m dribble bar is supported on chassis box frames to transfer the total weight to the tank chassis. As a result, there is no weight carried on the rear utility hole. Additional reinforcement is placed along the tanker chassis during manufacture to support the dribble bar weight. Weighing in at just 520kg, the dribble bar is lightweight and fully galvanised. The frame is tied to the dished end for stability. The distributor and arms are carried on the fixed mast. Both arms are spring-loaded for protection. A junction box is attached for rear filling, stone collection, and splash plating. The junction box has an outlet underneath for the easy removal of stones. Splashplating is simple via changing the tractor spool.
| Outlets/Dist | Weight | Transport | Macerator | |
|---|---|---|---|---|
| 7.5m HiSpec Dribble | 30 / 26cm | 475kg | 2.2m | Yes |
| 9m HiSpec Dribble | 40/ 25cm | 750kg | 2.4m | Yes |
| 10.5m HiSpec Dribble | 42/26cm | 600kg | 2.55m | Yes |
Our Dribble Bars are available in 7.5m, 9m and 10.5m working widths and feature Hi-Spec’s innovative new macerator with three double-sided blades on each side. The long-life blades are internally tensioned via springs and are self-sharpening against the cutting screen. The dribble bar is also easily removable. By removing the top pin, the dribble bar can be lifted up and away, allowing the tanker to revert to a conventional setup. All hydraulics connections are quick-release.
Hi-Spec Chassis Mounted Dribble Bar variant specifications and features.
• Hi-Spec distributorc/w stone trap
• Lay flat hose outlets
• Chassis mounted
• Sprung break-back arms (to prevent damage in case of collision)
• Splash plate
• Diverter switch control between lifting arms & distributor/gate valve
• Galvanised frame finish
• LED rear lighting bar
