The Hi-Spec side-spreader range is one of the leading spreaders on the market today.
Description: The Hi-Spec Side Spreader is built with a 5mm fully welded heavy-duty barrel; the spreader can handle all types of manure. The side-spreader is available in two sizes, both of which feature a strong, fully integrated chassis frame giving maximum support, strength and durability to the barrel. This also reduces stresses on the barrel as the spreader is unloading.
Side Spreader Range
| Product | Wheels | Capacity |
|---|---|---|
| 800 SS | 550/60 – 22.5 BKT FL648 | 8 yards |
| 1000 SS | 550/60 – 22.5 BKT FL648 | 10 yards |
The 3mm hydraulically operated lid ensures that loading is quick and easy. Once loaded, the 168mm diameter rotor will rotate at approximately 230rpm. This speed allows the hardened chains and toughened flail heads to unload the manure in an even consistent spread pattern.
The side spreaders feature a single drive chain with manual tensioning as required. LED road lights and hydraulic brakes are also provided as standard. All spreaders are shot-blasted before painting in two-pack Hi-Spec red paint to enable a strong bond with the paintwork. This metal-on-metal contact ensures an excellent key for the paintwork and that the quality of your spreader remains intact for years to come. In addition, the 1000 SS is fitted with a central greasing point as standard. Both models are also fitted standard with a non-shear bolt PTO.
Features
Tyres

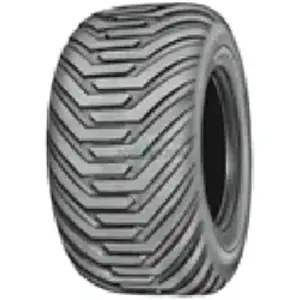

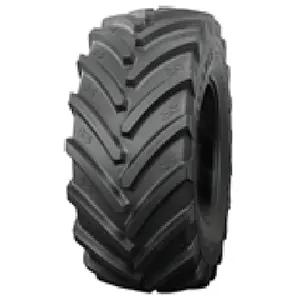

The most common choice of tyre for both models is the 550/60-22.5 BKT FL648 flotation tyre, as the weight of the spreader is spread over a greater area. The flotation tyre allows the spreader to float over the ground without damage. The unique thread design allows for carrying very high loads at low pressure, guaranteeing reduced soil compaction and preventing damage to the soil. If the sloped ground is an issue in the fields, fitting the 540/70 R24 tractor grip tyre will provide greater grip on those sloped areas.
 |
 |
 |
|---|---|---|

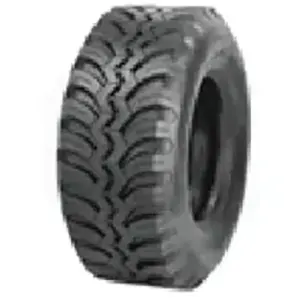

| 15 x 22.5 | 550/60 – 22.5 BKT FL648 | 540/70 R24 |
| 385 (15”) 1080 (43”) | 550 (22”) 1240 (49”) | 540 (21”) 1400 (55”) |
Additional Features
Both side spreaders are fitted with the following features as standard:
• Ring hitch
• Parking brake
• Non-shear bolt PTO
• Hydraulically operated 3mm lid
• Heavy-duty rotor
• Hardened chain c/w toughened flail head
• Starting flails
• Front inspection cover
• Manual chain tensioning
• 5mm British steel drum
• 3mm hydraulically operated lid
• 2″ drain plug
• LED road lights (x1)
• Agricultural axle
• Hydraulic brakes
• Hi-Spec red paint finish
